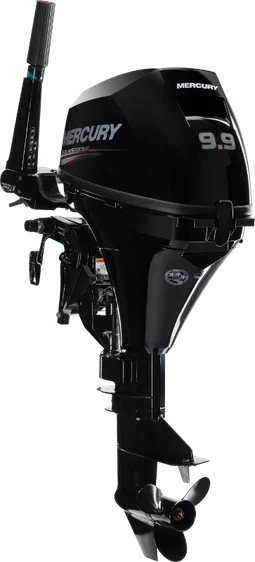

Petrol engine MERCURY 9.9 EH

Petrol engine MERCURY 9.9 EH

Mercury four-stroke boat engines – more than 70 years of experience in the production of boat engines. Mercury four-stroke engines save up to 30% on fuel economy.

Safety – more than 70 years of experience in the production of boat engines, anti-corrosion coating, Discharge Ignition (CDI) provides greater safety and easy starting, increased maneuverability and fuel economy.

Ride quality – 4 tilt positions provide easy access to low water areas, Vibro protective throttle control handle guarantees smooth engine response to operator control actions, built-in discharge ignition system units ensure accurate and timely operation of the ignition system.

Technical solutions Universal, retractable steering wheel allows you to steer the boat with one hand, built-in fuel tank will provide more space in the boat, oil pressure warning system, 3-star rating according to the level of harmful emissions according to CARB standards. steering wheel control with 360 degree turning angle.

Symbols: M – manual (manual) start; E – electric starter; L – long “leg” of the engine; H – manual control

SPECIFICATION MERCURY Four Stroke F9.9EH

HP / kW 9.9 / 7.3

Engine type 2 cylinders

(CID / CC) 12.8 / 208

Full capacity RPM 5000-6000

Recommended fuel Min. lead-free 90RON

Recommended oil Mercury Four Stroke Oil 10W-30

Fuel supply system Carburettor

Fuel tank capacity 12L

Ignition system CDI electronic

Transmission 2.08: 1

Starting Electric

Management Hands

Leg length 15 “/ 381 mm

Weight 41 kg

Cooling system Water with thermostat

Color Phantom Black

Warranty 5 years

Diameter and stroke 2.16 x 1.73 “/ 55 x 44 mm

Exhaust system Above the propeller

Generator A / W 6 A / 76 W

Explanation of abbreviations:

F – 4-stroke engine

М – hand starter

Е – electric starter

EFI – Electronic Injection

PT – electric hydraulic lift

S – leg length – 381mm

L – leg length – 508mm

XL – leg length – 635mm

SW – for salt water

SeaPro – for commercial use

Sail – an auxiliary engine for yachts

O – automatic oil and gasoline mixing

BF – cargo reducer for heavy vessels

OptiMax – direct fuel injection system

C – opposite rotation propeller

Manufacturer: MERCURY

Made in the USA

Warranty: 5 years

Product code: 1F10301KK

Starter: Electric

Engine management: Manual

Fuel tank capacity: 12L

Number of cylinders: 2

Engine leg length: 15

Color: Phantom Black

Power: 9.9 hp (7.3kW)

Weight: 41 kg
