Description

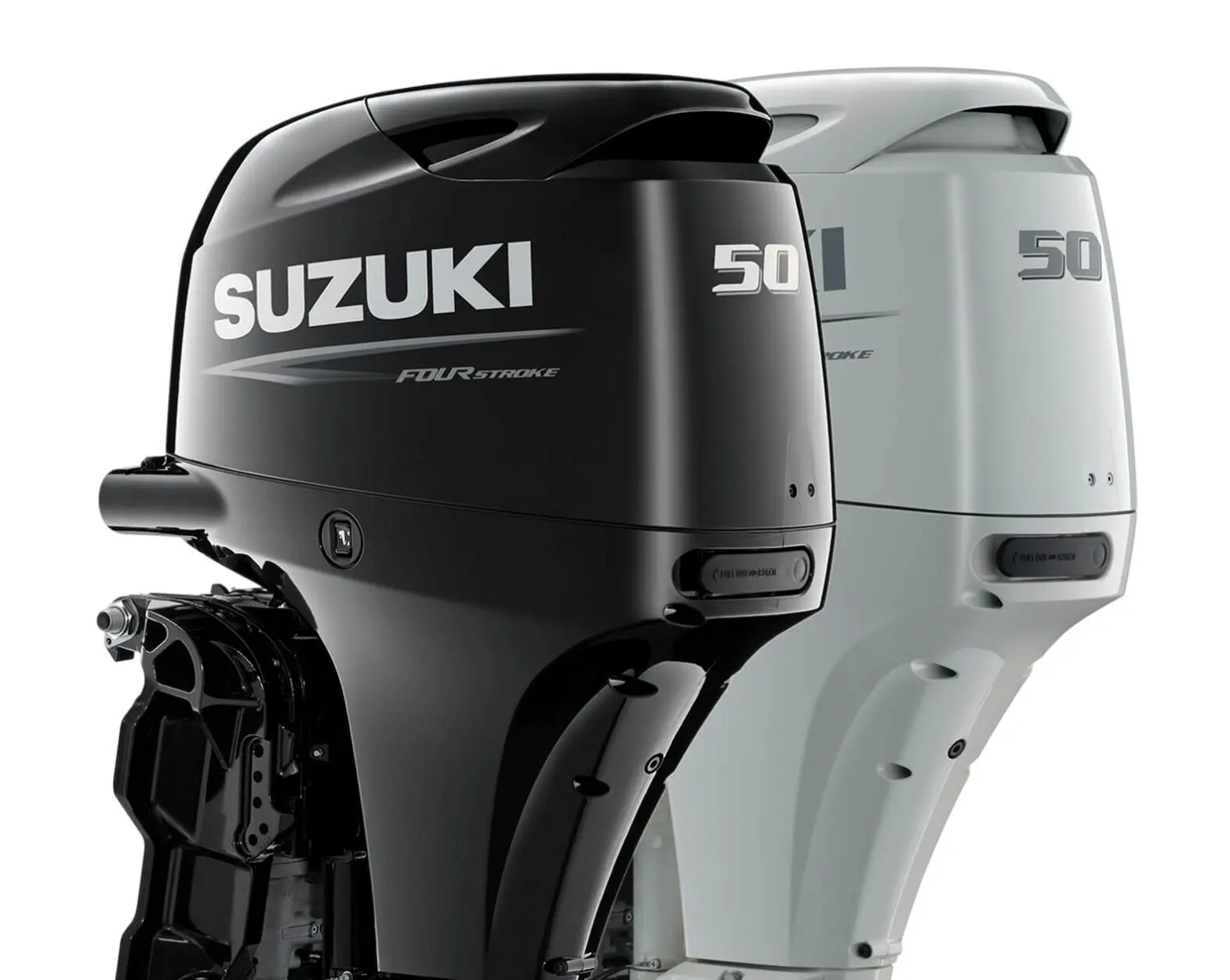

Petrol engine SUZUKI DF50 ATS EFI
Petrol engine SUZUKI DF50 ATS EFI
DF50A outboard engine is designed to deliver fuel economy in a compact and lightweight design. Suzuki’s most innovative product in the last ten years! This three-cylinder, four-valve-per-cylinder (DOHC) engine features a maintenance-free oil bath-mounted timing chain that gives the outboard improved durability. The DF50A is combined with Suzuki’s Lean Burn Control System to deliver high performance with top fuel economy.
SUZUKI DF 40/50/60A
DOHC – 2 camshafts and 4 valves per cylinder ensure low fuel consumption.
The new DF40A, DF50A, and DF60A engines use many of the technical improvements that Suzuki
has developed for their boat engines over the past ten years. Suzuki Lean Burn
Control System provides good performance, efficient engine operation and
performance. The DF40A, DF50A, and DF60A models also support Suzuki’s Troll-Mode system for those fishing and trolling. Ability to connect NMEA network.
| MODEL | DF50A |
|---|---|
| RECOMMENDED TRANSOM HEIGHT mm | S:381, L:508 |
| STARTING SYSTEM | Electric |
| WEIGHT kg *4 | S:102, L:104 |
| ENGINE TYPE | DOHC 12-Valve |
| FUEL DELIVERY SYSTEM | Multi-Point Sequential Electronic Fuel Injection |
| NO. OF CYLINDERS | 3 |
| PISTON DISPLACEMENT cm3 | 941 |
| BORE ×STROKE mm | 72.5 × 76 |
| MAXIMUM OUTPUT kW | 36.8 |
| FULL THROTTLE OPERATING RANGE rpm | 5,300-6,300 |
| STEERING | Remote |
| OIL PAN CAPACITY Lit. | 2.7 |
| FUEL TANK CAPACITY Lit. | 25 (Optional) |
| IGNITION SYSTEM | Fully-transistorized |
| ALTERNATOR | 12V 19A |
| ENGINE MOUNTING | Shear Mount |
| TRIM METHOD | Power Trim and Tilt |
| GEAR RATIO | 2.27:1 |
| GEAR SHIFT | F-N-R |
| EXHAUST | Through Prop Hub Exhaust |
| PROPELLER SELECTION (Pitch) *5 All propellers are the 3-blade type | 9″-17″ |
